Web Page script component

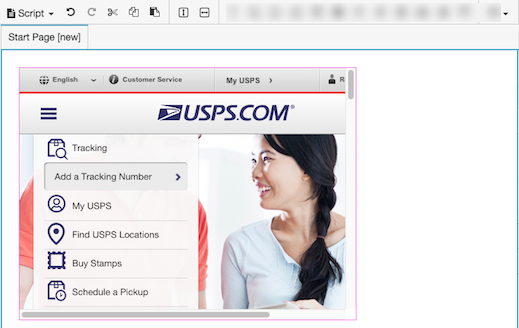

The Web Page component embeds a hosted webpage into a script page. At run time, the specified page loads with the script page.

1. On the Component toolbar, click Web Page .

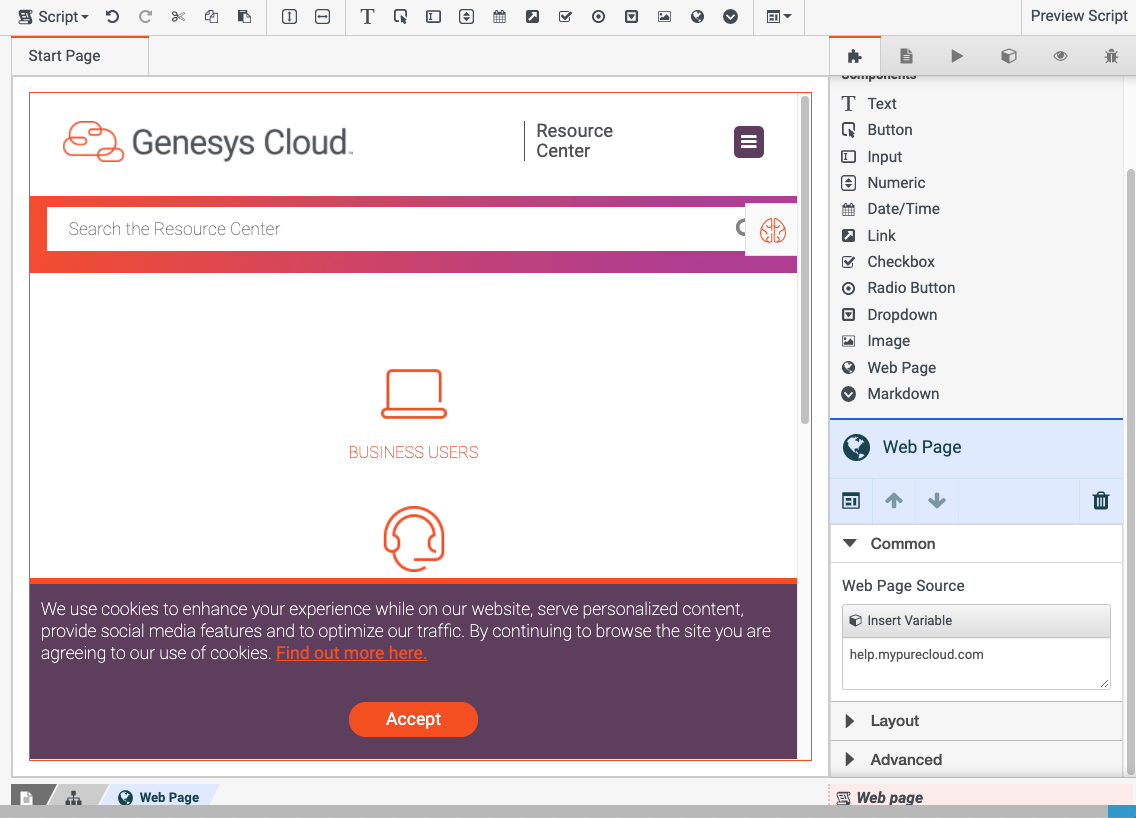

2. Expand the Common group in the properties panel. Then type the fully qualified URL of a web page in the Web Page Source box. Optionally, choose a string variable whose value contains a URL. The page loads immediately so that you can verify that the URL is valid. You do not need to select Preview mode.
3. Set any other properties of the component.

Expand allCollapse all

Common

Web Page SourceClick to expand
The Web Page Source sets the URL of a web page to embed inside a web page component. You can type the URL of a web page, or pass a URL to the component using a variable.
When a valid URL is entered, the web page component displays the page immediately.
Note: The URL must begin with https://. If the remote server does not support secure http protocol, the web page component cannot display pages from that server.

Layout

WidthClick to expand

Configures width to a fixed size, to grow as needed to display content, or to consume as much space as possible relative to other components, using weighting to influence size adjustments.

• Auto-sizing configures the component to shrink or grow in accordance with its contents. For example, the width of a label can grow depending up on how much text it contains.
• Stretch allows a component to consume as much space as possible relative to other components, using weighting to influence size adjustments.
  Note: If two components are both set to stretch, they are both allocated 50% of the remaining space by default. This proportion can be adjusted by changing the weight value. For example, if you set one component to a weight of 200, and the other to a weight of 100, then the first component occupies two thirds of the remaining space, while the other only takes one third. The first component appears twice the size of the other component, since its weight was two times the second component's weight.
• px sets a fixed size in pixels. You can type an integer value into the box, or use up or down arrows to increment or decrement size. These arrows are visible when the component has focus.

HeightClick to expand

Configures height to a fixed size, to grow as needed to display content, or to consume as much space as possible relative to other components, using weighting to influence size adjustments.

• Auto-sizing configures the component to shrink or grow in accordance with its contents. For example, the width of a label can grow depending up on how much text it contains.
• Stretch allows a component to consume as much space as possible relative to other components, using weighting to influence size adjustments.
  Note: If two components are both set to stretch, they are both allocated 50% of the remaining space by default. This proportion can be adjusted by changing the weight value. For example, if you set one component to a weight of 200, and the other to a weight of 100, then the first component occupies two thirds of the remaining space, while the other only takes one third. The first component appears twice the size of the other component, since its weight was two times the second component's weight.
• px sets a fixed size in pixels. You can type an integer value into the box, or use up or down arrows to increment or decrement size. These arrows are visible when the component has focus.

AlignClick to expand

Aligns a component to the left, right, or center, relative to its parent container.

Tip: A component cannot be vertically aligned to center if the Height setting of its parent container is Auto Sizing. To correct this, set the parent container's Height to Stretch or to a fixed height in Pixels.

MarginClick to expand

Margins set left, right, top, and bottom spacing around a border.

1. Click the value field for a margin. A spin control appears in that field.
2. Use the spin control to increase or decrease the margin.
3. To update all margin values at once, click the Set All button for Margin in the properties panel.

VisibleClick to expand

The Visible property sets the visibility of a component based on the value of a Boolean (True or False) variable or an expression.

To set the Visible property based on a variable:

1. Click the Layout property group in the Properties panel.
2. Under Visible, click Select Variable.
3. Select a variable, or optionally create a new Yes/No variable and then assign that new variable to the Visible property.
4. At runtime, the component is visible when the value of the variable is True. Conversely it is hidden when the variable's value is False.

To set the Visible property based on an expression:

1. Click the Layout property group in the Properties panel.
2. Under Visible, select True/False Expression.
3. In the Insert Variable box, enter an expression .

At runtime, the component is visible when the expression is True. The component is hidden when the expression is False.

Advanced

Web Page SourceClick to expand
The Web Page Source sets the URL of a web page to embed inside a web page component. You can type the URL of a web page, or pass a URL to the component using a variable.
When a valid URL is entered, the web page component displays the page immediately.
Note: The URL must begin with https://. If the remote server does not support secure http protocol, the web page component cannot display pages from that server.
