Flows Performance Summary view

To customize analytics views, use the date filter.

To filter metrics by date or configure a custom date range, use presets. When filtering metrics for this view, select any custom date range up to 6 weeks.

To use a preset to filter metrics, complete the following steps:

1. To display the date filter, click the date.
2. In the Presets list, select a preset date option.

Date presets

To use a custom date range to filter metrics, complete the following steps:

1. Click the date to display the date filter.
2. Select a start date and an end date on the calendar, and click the filter arrow .

To view data for a different time period using the same date presets, click the arrows on either side of the date display.

For example, to view data for the previous day, click the Day preset, and then click the arrow on the left side of the date.

To view data for a different time zone using the same date presets, from the Time zone drop-down menu, select the required time zone. You can create and save reports with the same selected time zone.

1. To filter by media type, click the Filter icon .
2. Select the media type.


The selected media type icon is displayed above the column headers. For more information about various media types and their settings, see the Set behavior and thresholds for all interaction types section in the .

Data in the view can be displayed in a chart. To view the chart, click the Show/Hide chart icon .

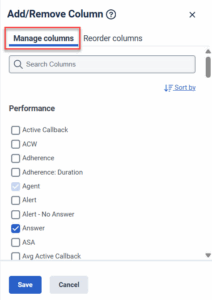

To show or hide columns:

1. At the top right corner of the columns, click the Pick columns icon. The Add/Remove Column pane appears.
2. Click the Manage columns tab.
3. (Optional) To sort the columns in ascending or alphabetical order, click Sort by > Column Name A-Z.
4. (Optional) To sort the columns in descending or reverse alphabetical order, click Sort by > Column Name Z-A.
5. (Optional) To categorize or uncategorize the columns, click Sort by and enable or disable the Group by Categories toggle.
6. Search or scroll to select the columns you want to view.
   Note: You can also use keyboard navigation to choose the columns.

7. Click Save. The selected columns appear on the screen.
   Note: The column selections appear only after saving the changes and do not apply to the table immediately.

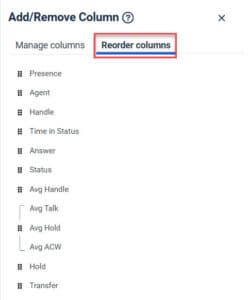

To reorder the columns within the column picker:

1. At the top right corner of the columns, click the Pick columns icon. The Add/Remove Column pane (column picker) appears.
2. Click the Reorder columns tab.
3. Click the grid icon of a column, and then drag and drop to reorder it within the column picker.

To rearrange the columns outside the column picker, click a column header and drag it.

To reset a view to default column settings, click Reset view to defaults.

You can select up to 20 columns.

For more information about the metrics shown in the columns, see the Available Columns section in this article.

To filter the view to see only the flows that you want, click the Filter flow(s) search icon .  Enter the name of the flow in the Filter flow(s) field, and select the flow from the search results. You can continue to enter and select additional flows to add to the view.

Filter by selecting flows

You can select multiple flows to filter by.

1. In the flow’s row, select the check box.
2. Continue selecting flow check boxes to add to filters.
3. Click Add to filters.

To stop filtering by a flow, above the table, click  beside that flow’s name.

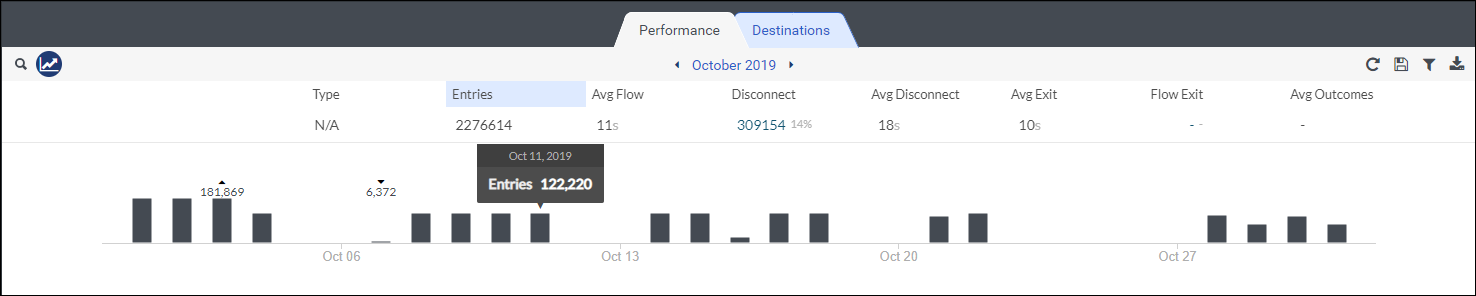

The summary row above the flow rows displays a graph of a metric for all or selected flows. To choose which metric to display, click a metric above the graph. To see more metric options, show more metric columns. To see only data for certain flows, filter for those certain flows.

To see more information about the data, hover over the bars in the graph. The above a bar represents the largest amount for that time period, and the represents the lowest amount.

To filter by information about the flow, click Filters , and then search or scroll to select the filter you want to use.
